Precision has always been a defining requirement in medical device manufacturing. In the past decade, however, the demands placed on engineered medical components have intensified dramatically. Devices are expected to navigate smaller anatomies, operate through narrower access pathways, and perform with greater consistency despite increasingly complex mechanical requirements. As the medical sector continues its shift toward miniaturized interventional technologies, one manufacturing process has quietly become indispensable: micro-grinding.
At Custom Wire Technologies, Inc., we view micro-grinding not as a single operation, but as a holistic discipline grounded in engineering fundamentals, material science, and controlled process capability. It is one of the few manufacturing methods capable of producing the fine diameters, smooth surface finishes, and tight geometric tolerances that modern medical components demand. Whether manufacturing guidewires, hypotubes, mandrels, orthopedic fixation wires, or advanced nitinol components, micro-grinding sits at the center of reliable performance.
This article examines why micro-grinding has become a critical pillar of medical component manufacturing, how the process interacts with today’s most advanced materials, and why engineering expertise matters as much as equipment capability.
Understanding Micro-Grinding and Its Role in Precision Manufacturing
Micro-grinding removes material in extremely small increments, often measured in microns, and enables diameters within the range of 0.008” to 0.125” (0.20-3.20mm) with tolerances as tight as ±0.0005″ regularly, down to ±0.0001″ depending on the application. This level of control is required for components that must exhibit predictable mechanical behavior within the human body.
One reason micro-grinding is so important is that many of the materials used in medical device engineering are difficult to machine with conventional tools. Some of the most commonly used include:
- Stainless steel that requires careful thermal control
- Titanium resists clean cutting because of its reactive nature
- Nitinol that demands extremely low heat and controlled abrasion to preserve shape memory and superelastic behavior
Each of these materials benefits from a grinding process that minimizes mechanical stress while delivering precise geometry. In vascular navigation, implantable devices, and catheter-based systems, micro-grinding often becomes the only viable method to achieve the stability required for clinical performance.
Core Wire and Guidewire Grinding: Foundational Components for Interventional Devices
Guidewires and core wires represent some of the most technically demanding components in medical manufacturing. They require specific flexural profiles, transition zones, and torque response characteristics that cannot be produced reliably with conventional machining methods. Instead, these properties are created through precise geometric transitions generated by controlled micro-grinding.
Our expertise in guidewire grinding and core wire profile development allows engineers to build devices around predictable behavior. Long distal tapers, radiused transitions, and variable stiffness profiles are crafted with consistency, ensuring dependable performance across prototypes and production runs.
You can explore these capabilities in greater detail at: Core Wire Grinding.
Centerless grinding supports this consistency. By properly supporting the wire during material removal, we achieve geometric precision that facilitates reliable device navigation and controlled mechanical response.

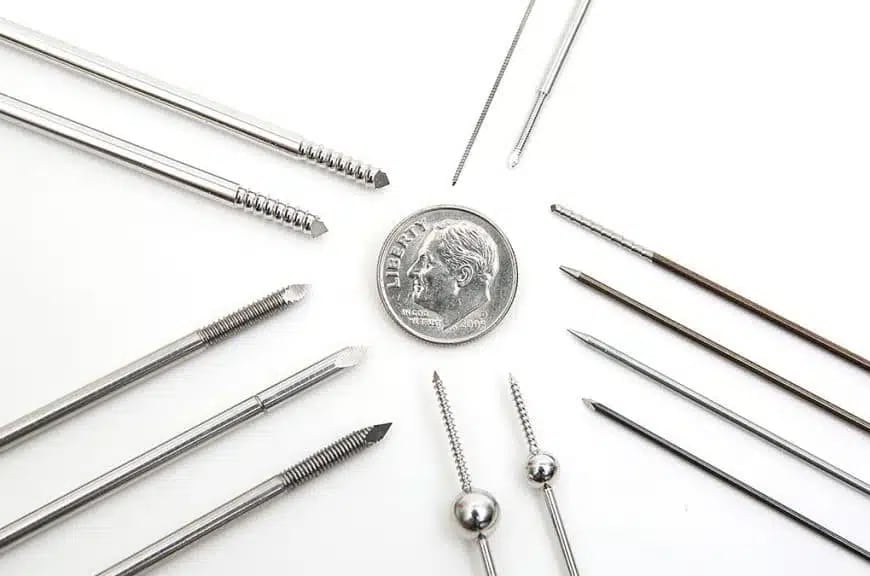

Orthopedic Wires: Precision in Structural Applications
Orthopedic wires may appear simpler than guidewires, but they carry significant responsibility in structural and fixation applications. Surgeons rely on these wires to maintain alignment, support healing, and perform predictably under load. Variations in straightness, finish, or diameter can affect both surgical technique and patient outcome.
Our work with Kirschner wires, Steinmann pins, and custom orthopedic wire designs emphasizes stable manufacturing processes and consistent mechanical properties. When forming and coiling requirements are added, we integrate micro-grinding with secondary processes to maintain uniform performance.
Additional resources:
Custom Wire Forming
Medical Coil Services
Mandrel Grinding: A Support Structure for Modern Device Construction
Mandrels play a critical structural role in catheter-based device construction. They determine the geometric foundation around which sheaths, braids, and other components are formed. Because these secondary processes are sensitive to variation, mandrels require extremely controlled grinding.
Our mandrel grinding program supports components with tapers, flats, stepped transitions, and custom geometries. Many mandrels are PTFE coated to enhance lubricity, and the finish beneath the coating must be uniform to prevent friction variation or coating failure. As device requirements continue to advance, the ability to produce consistent mandrel geometry becomes a crucial differentiator.
Nitinol Products: A Material That Demands Respect
Nitinol has enabled the creation of many modern interventional devices, from stents to advanced guidewires. Its ability to recover its shape under heat and its remarkable elasticity give it unique advantages, but those same characteristics make it sensitive during manufacturing.
Micro-grinding enables the formation of nitinol geometries without introducing excessive heat or mechanical stress. Our process focuses on preserving both shape memory and superelastic behavior so that each component performs dependably in the field.
More information about these capabilities is available at: Nitinol Products.
Hypotube Grinding: Precision at the Center of Minimally Invasive Technology
Hypotubes define the mechanical characteristics of many catheter-based devices. Their wall thickness, taper geometry, and internal surface integrity directly influence pushability, torque response, kink resistance, and clinical control.
Micro-grinding allows hypotubes to achieve the precise transitions and dimensional consistency needed for next-generation catheter systems. Smooth profiles, tightly controlled diameter changes, and micro-level tapering all support responsive and predictable device performance.
For additional detail, see:
Precision Grinding Services.
Material Expertise: Steel, Titanium, Nitinol, and Emerging Alloys
Each alloy interacts differently with the grinding environment. Stainless steel requires thermal control, titanium demands clean abrasive processes, and nitinol requires low heat and careful material removal. Our engineering team tailors grinding strategies to match each alloys behavior, preserving the functionality needed for clinical applications.
For delicate coiling or fine wire applications, explore: Micro Fine and Ultra Fine Wire Coiling.
Material science awareness is essential in micro-grinding. Understanding how each alloy behaves during grinding ensures performance in the finished device.
Why Micro-Grinding Is No Longer Optional
As medical devices continue to shrink and evolve, micro-grinding has become an essential enabling technology. Three pressures in particular make it unavoidable:
- Increasing device complexity that demands controlled geometry and surface finish
- Smaller anatomical pathways that require extremely fine components with predictable behavior
- Regulatory and clinical expectations for repeatability and performance consistency
Micro-grinding is not merely a manufacturing step. It is the method that allows design intent to become a manufacturable reality. Whether producing torque-transmitting guidewires, flex-controlled nitinol shafts, high-precision orthopedic components, or catheter-based hypotube systems, micro-grinding provides the dimensional control that keeps devices safe, reliable, and functional.
Frequently Asked Questions
What role does micro-grinding play in modern medical device development?
Micro-grinding creates the geometry, surface finish, and dimensional accuracy required for advanced medical components such as guidewires, hypotubes, nitinol parts, mandrels, and orthopedic wires.
Why is micro-grinding preferred over conventional machining?
Conventional machining can create thermal or mechanical disturbance in advanced alloys. Micro-grinding removes material in microscopic increments, keeping geometry stable and preserving functional properties.
Is micro-grinding appropriate for nitinol?
Yes. When controlled properly, micro-grinding maintains nitinol’s shape memory and elastic behavior. The key is limiting heat input and maintaining controlled abrasive action.
What tolerances are typical?
Tolerances as tight as ±0.0005″ regularly, down to ±0.0001″ depending on the application.
Can Custom Wire Technologies support prototype and production work?
Yes. Our process capability ensures that precision achieved during early prototyping is maintained throughout full production scaling.
Partner With a Leader in Medical Micro-Grinding
Custom Wire Technologies, Inc. has supported medical manufacturers for decades through micro-grinding, mandrel grinding, hypotube grinding, and medical wire grinding. Our experience spans prototyping to full production, supported by engineering insight and robust process control.
For additional enhancement and downstream support services, visit: Value Added Services
