At Custom Wire technologies, Inc. we pride ourselves on quality. Our precision grinding division is no different, especially when it comes to accuracy in measurement. We provide a wide array of products and services to Medical OEMs around the world, adhering to their specifications to manufacture quality components.
We specialize in OD profile and centerless grinding, but we also provide additional services for products like guidewires, K-Wires, orthopedic pins, needle prototypes, ground hypotubes, mandrels, and additional medical related products.
We keep expanding our precision grinding services and secondary capabilities to expand our ability to manufacture your product from start to finish. Please inquire to find out how we can help you with your product.
Sizing and Specs
- Minimum Starting Size: 0.006” OD
- Maximum Starting Size: 0.188” OD
- Most Common Centerless Sizes: 0.008” to 0.032” (0.20-0.80mm)
- Most Common OD/Profile Sizes: 0.008” to 0.125” (0.20-3.20mm)
- Lengths of 10 feet and beyond
- Various materials (see materials list below)
- Diameter Tolerances: ±0.0005″ regularly, down to ±0.0001″ depending on application
- Length Tolerances: ±0.020″ regularly, down to ±0.005″ depending on application
- Machine Control to 0.00001”
- Centerless, OD, and Profile Grinding
CWT also offers a variety of wheel geometries and compositions, laser profilometer capability for measurement, and CNC wheel dress capability. We can automate certain applications for lights out operation.
- 304, 304V, 304L
- 316, 316L, 316LVM
- Inquire about others
Nickel Titanium (NiTi, Nitinol)
- Shape memory
- Pure commercial grades 1-4
- Ti-6Al-4V ELI
- Tool steels
- Inquire about others
With centerless grinding the typical types of ground wires include core wires, mandrels and guidewires. The centerless grind taper allows surgical wires to have optimal levels of stiffness and flexibility throughout the length of the medical device. CWT grinds long tapers, short tapers and steps to suit your medical device needs. We can create tapers at any angle and hold very tight tolerances across the profile.
Profile and OD Grinding
This type of grinding is preferred for threads, points and specialized profiles in a wire. For example, flat wires for medical components are ground this way. Other shapes include grooves, notches, steps, bumps, and flats.
Core Wire Grinding
CWT’s core wire grinding is unique in the ability to centerless grind long lengths of wires at very tight tolerances.
- Custom Guidewire development, prototyping and assembly
- Custom Grind Profiles, lengths & diameters
- Paddles, Flattening & Stamping
Tapers of varying lengths and diameters for flexibility
We can manufacture custom mandrels for many applications such as wire coiling and catheter manufacturing. Mandrels can possess many different shapes from many different materials. Shapes such as flats, steps, tapers, radii, and angles. These shapes can be ground into the stainless steel or nitinol material, making grinding a very economical choice for mandrel manufacturing. Tight tolerance capability and smooth surface finishes make grinding a logical choice.

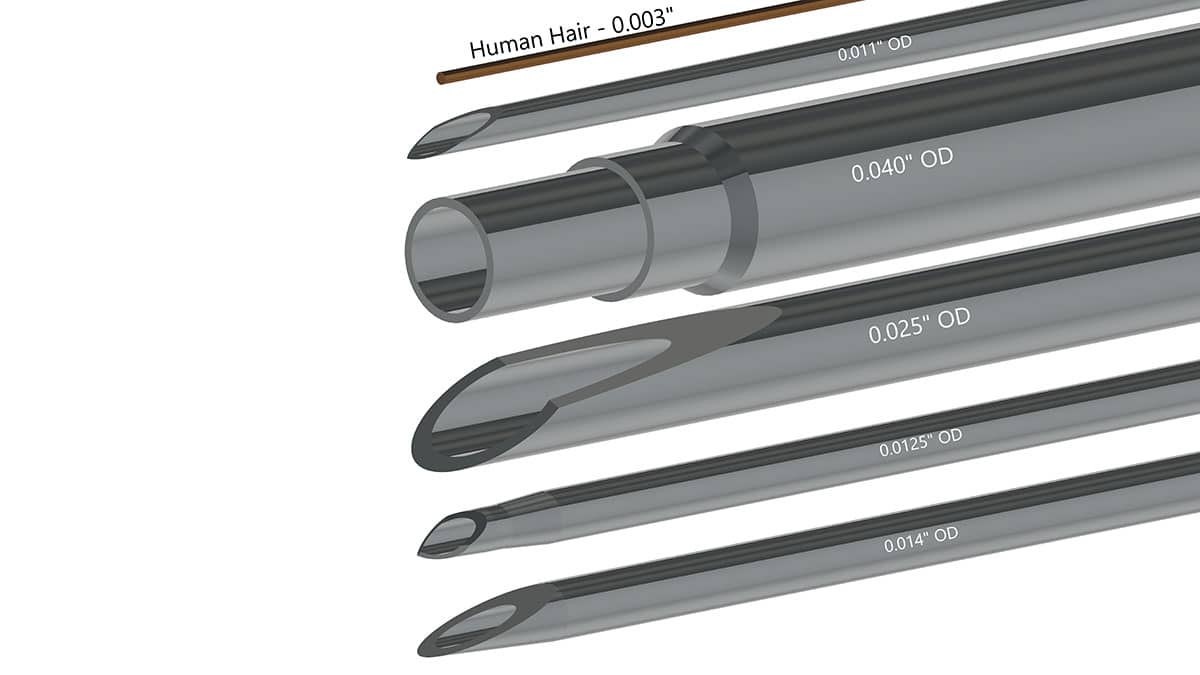

Hypotube grinding capability does not differ over solid wire grinding. CWT has the ability to grind hypotubes to very tight tolerances and very thin wall thicknesses. These grind profiles can include steps, tapers, bevels, and lancet tips. We excel at prototyping small lots to high volume production.
With the ability to grind various geometries, our ability to manufacture orthopedic wires is unique. From K-wires (kirschner wires), Steinmann pins, or fixation devices, CWT can help custom manufacture your medical component for you. Need threads on your nitinol wire? Need a ball in the middle of your wire? Need a laser marked depth bands? Contact us or learn more about how CWT can help.
Nitinol grinding is a manufacturing process that only a few medical companies can, or are willing, to do. This type of material is very abrasive which causes a large amount of heat during the grinding process, which then requires specialized wheels and coolant. CWT has experience with nitinol and can help provide the best solution for your nitinol designs. We can manufacture core wires, mandrels, orthopedic wires, and many other parts from nitinol. Additionally, we have the ability to take a ground part and shape set the material into a more complex shape. Another vertical integration that we offer our customer’s for quick a turnaround.
CWT has in-house capability to provide additional services to OEMs that require specialized treatments and coatings for their components. Additionally, CWT has partnered with industry-leading companies to provide further value to manufacture the wide array of products.
- Laser Marking
- Laser or Plasma Welding
- Cleanroom Assembly
- Ink Pad Printing
- PTFE Coating
- Wire EDM Cutting
