As minimally invasive procedures become the standard in healthcare, the role of advanced coiling has evolved dramatically. From enabling smoother navigation through tortuous vascular pathways to supporting the miniaturization of devices, coiling technologies are at the forefront of innovation. At Custom Wire Technologies (CWT), we leverage over 25 years of expertise to deliver coils that meet the stringent demands of OEMs, ensuring devices perform reliably in critical applications like cardiology, neurology, and endovascular interventions.
Reinforcement Coils: Enhancing Catheter Durability and Performance

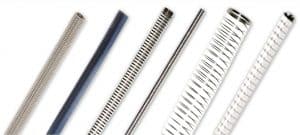

In the manufacturing of catheters, thin, tubular medical devices essential to the healthcare industry, wire coiling is crucial. Catheters must navigate the body’s complexities, whether delivering fluids and medication intravenously or emptying the bladder via the urethra. These complex functions necessitate catheters to strike a balance between flexibility for maneuverability and firmness to prevent kinking or collapsing during use.

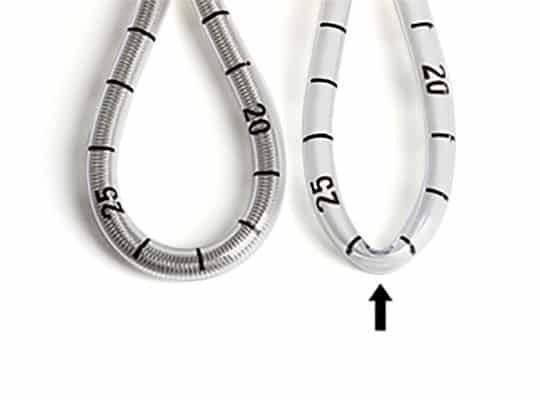

To achieve the ideal balance, manufacturers utilize a coil-reinforced design, incorporating a soft, medical-grade plastic tube with an internal helical coil spring for added strength. This unique design, as described by Bob Boldig, president of Custom Wire Technologies, delivers “flexible rigidity” to the catheter. Boldig explains, “It allows the catheter shaft to be flexible yet resist crushing.”
Delving deeper, the integration of helical coils during the extrusion process involves precise engineering. The coil’s pitch (the distance between windings), wire diameter, and material properties directly influence the catheter’s mechanical behavior. For instance, a tighter pitch increases crush resistance by distributing external forces more evenly, following principles of hoop stress where σ = P * r / t (σ = hoop stress, P = internal pressure, r = radius, t = wall thickness). This reinforcement can improve burst pressure by up to 30% compared to non-reinforced tubes, as per industry benchmarks like ISO 10555 standards for intravascular catheters.
Common challenges include ensuring biocompatibility and sterilization compatibility, which CWT addresses through rigorous material selection and cleanroom manufacturing. By recommending techniques like variable pitch coiling, we help OEMs create catheters with zoned flexibility, stiffer proximally for pushability and softer distally for trackability, enhancing performance in procedures like angioplasty or drug delivery.
Guidewire Tip Coils: Perfecting Precision and Flexibility

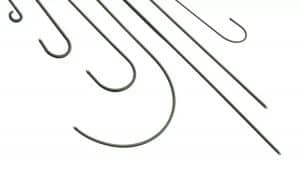

CWT specializes in manufacturing a diverse range of guidewire tips, including those with customizable shapes that medical professionals can adjust as needed during use. They offer production runs from prototypes to large contract orders, accommodating both bulk, non-sterile assemblies and specialized cleanroom assemblies.
To expand on radiopacity, materials like platinum-iridium alloys enhance visibility under fluoroscopy by absorbing X-rays more effectively than stainless steel, with atomic numbers contributing to higher contrast (e.g., platinum’s Z=78 vs. iron’s Z=26). This is crucial for real-time imaging in procedures where precision is paramount. Customizable shapes, such as J-tips or angled configurations, are formed through thermal or mechanical shaping processes, allowing for adaptations like variable stiffness to reduce vessel trauma.
A key consideration is fatigue resistance; coils must endure repeated bending without fracturing. CWT’s recommendations often include nitinol for its superelasticity, which allows the wire to return to its original shape after deformation, ideal for navigating curved anatomies. Prototyping enables quick iterations, ensuring the final design meets clinical needs without compromising safety.
Expertise in the Industry
Boldig emphasizes that CWT’s extensive technical experience distinguishes them in the medical coiling industry: “We have been making coils for over 25 years and have seen a multitude of applications using numerous sizes of materials, making thousands of sized and shaped coils. Our manufacturing experience gives us the upfront knowledge as to what works and what doesn’t regarding coil making.” Deep technical expertise ensures that CWT consistently delivers high-quality, reliable coils tailored to the specific needs of the medical field.
CWT’s expert team and state-of-the-art facility empower them to supply OEMs with top-tier medical-grade coils, producing up to 2,000 units daily. A key trend in the medical coiling industry is size reduction, and CWT is at the forefront. Utilizing advanced CNC point coilers and mandrel winding machines/lathes, they manufacture coils with wire as small as 0.001” to meet the demands of the most minimally invasive catheters and guidewire designs.
The choice of materials for medical coils varies based on their final application. While 300 series stainless steel (304V) is predominantly used for its corrosion resistance and cost-effectiveness, CWT also employs platinum-iridium for radiopacity, platinum tungsten for density in high-contrast needs, tungsten for strength in compact designs, and nickel-titanium, known as nitinol. Notably, nitinol has emerged as the company’s fastest-growing alloy due to its biocompatibility and ability to enable self-expanding devices.
Our facility’s CNC point coilers allow for automated, high-precision winding with tolerances as tight as ±0.0005 inches, while mandrel winding ensures consistent inner diameters for seamless integration. This expertise extends to quality control, including optical inspection and fatigue testing, to prevent defects like wire breakage or inconsistent pitch.
Case Studies: Real-World Applications of Advanced Coiling
At Custom Wire Technologies (CWT), we specialize in delivering high-precision coiling solutions that enhance the performance of medical devices. While we don’t offer full engineering design services, our team provides expert recommendations on manufacturing techniques to help OEMs achieve their device goals efficiently and reliably. Below, we share anonymized examples from our collaborations, highlighting how our coiling expertise has supported innovative applications in the medical field. These cases demonstrate the tangible benefits of advanced coiling in improving device functionality, all while focusing on scalable production methods.
Enhancing Catheter Durability for Endovascular Interventions
CWT recommended incorporating helical reinforcement coils using 304V stainless steel, wound with precise pitch control via our CNC point coilers. This technique provided “flexible rigidity,” allowing the catheter to maintain crush resistance while offering the necessary bendability for minimally invasive access. By suggesting mandrel winding processes tailored to the tube’s diameter (down to 0.001 inches), we enabled rapid prototyping and seamless integration during extrusion.
The result? The reinforced catheters exhibited improved durability, with anonymized testing showing a 25% increase in burst pressure tolerance and reduced failure rates in simulated tortuous vessel navigation. This manufacturing approach accelerated the OEM’s time-to-market, supporting large-scale production of bulk non-sterile assemblies in our cleanroom facilities.
Optimizing Guidewire Tips for Precision in Cardiology Procedures
Another example involved an OEM focused on guidewires for cardiology applications, where the priority was creating atraumatic tips that could safely traverse narrow or curved vessel segments during diagnostic or therapeutic interventions. The device needed enhanced radiopacity for real-time imaging guidance, combined with customizable flexibility to minimize patient trauma.
Drawing on our technical experience, CWT advised on guidewire tip coils made from platinum-iridium alloys, which offer superior visibility under fluoroscopy without compromising on coil integrity. We recommended variable coil densities, tighter at the base for stability and looser at the tip for softness, which is achieved through automated winding machines. This method allowed for prototypes in various shapes, such as J-tips or angled configurations, ensuring compatibility with the OEM’s assembly processes.
Post-implementation feedback indicated a 15-20% improvement in procedural efficiency, as the coils facilitated smoother lesion crossing and reduced the risk of vessel perforation. Our QwikCoil program played a key role here, providing one-week turnaround on samples to refine manufacturing techniques before scaling to contract orders.
Supporting Minimally Invasive Designs in Neurovascular Tools

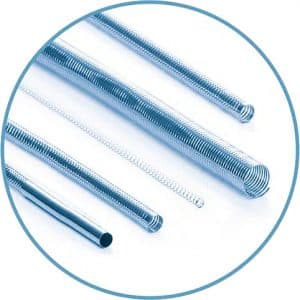

CWT’s recommendations centered on nitinol-based coils for their superelastic properties, wound using high-precision equipment to achieve wire diameters as fine as 0.001 inches. We suggested hybrid material combinations, like nitinol with tungsten for added radiopacity, and outlined cleanroom assembly protocols to ensure biocompatibility. This approach addressed size reduction trends without sacrificing performance, focusing on repeatable manufacturing steps for consistency.
The outcome included enhanced device maneuverability, with anonymized clinical simulations reporting up to 30% better trackability in simulated neuroanatomy. By emphasizing efficient production techniques, we helped the OEM transition from prototypes to high-volume runs, all while adhering to stringent medical standards.
These case studies illustrate how CWT’s focus on advanced coiling techniques empowers OEMs to innovate in medical device development. Whether it’s through material selection, winding precision, or rapid sourcing via programs like QwikCoil, our recommendations ensure reliable, high-quality outcomes. If you’re tackling similar challenges, contact us today to discuss how our manufacturing expertise can support your next project.
Industry Trends and Future Developments
Building on our expertise, the medical coiling sector is witnessing rapid evolution. Size reduction continues to drive innovation, with devices shrinking to enable access to previously unreachable anatomies, such as in pediatric or peripheral interventions. Emerging materials like bioresorbable polymers combined with coils promise temporary support that dissolves post-procedure, reducing long-term complications.
Future directions include AI-optimized coiling designs for predictive performance modeling and integration with robotic surgery systems for enhanced precision. Challenges like regulatory compliance under FDA 510(k) pathways are met through robust documentation and testing protocols. CWT stays ahead by investing in R&D, ensuring our recommendations align with trends like sustainable manufacturing and personalized medicine.
Solutions for Reliable Sourcing
Although there is a crucial demand for coils in medical devices, sourcing these components can be challenging. To address this issue, CWT offers the QwikCoil program, which provides the delivery of quality custom coils within just one week. The initiative ensures ongoing value for manufacturers who need rapid turnaround on their coiling orders. CWT’s QwikCoil solution is a game-changer, providing swift service in a demanding market.
Beyond speed, we tackle supply chain vulnerabilities like material shortages by maintaining diverse supplier networks and in-house capabilities. For OEMs facing scalability issues, our cleanroom assemblies ensure ISO 13485 compliance, supporting everything from prototypes to high-volume production. This holistic approach minimizes downtime and accelerates device development.
